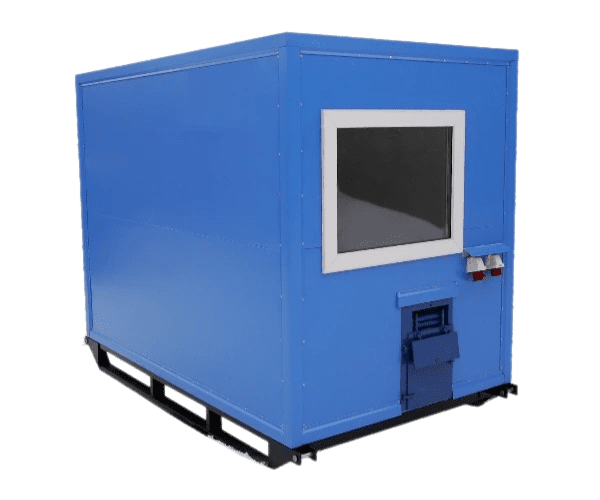

Laboratory of GDIS Block Box
Well testing lab based in the heat-insulated dog-house with pre-installed winch “LKI-Tekhno” designed for slickline conveyed well intervention whilst well testing, remedial and cleanup operations
By clicking on the button, you consent to the processing of your personal data in accordance with the privacy policy
01
02
Direct equipment manufacturer
We guarantee the quality of our products
Certified equipment
Development according to drawings
Warranty service
Worldwide delivery

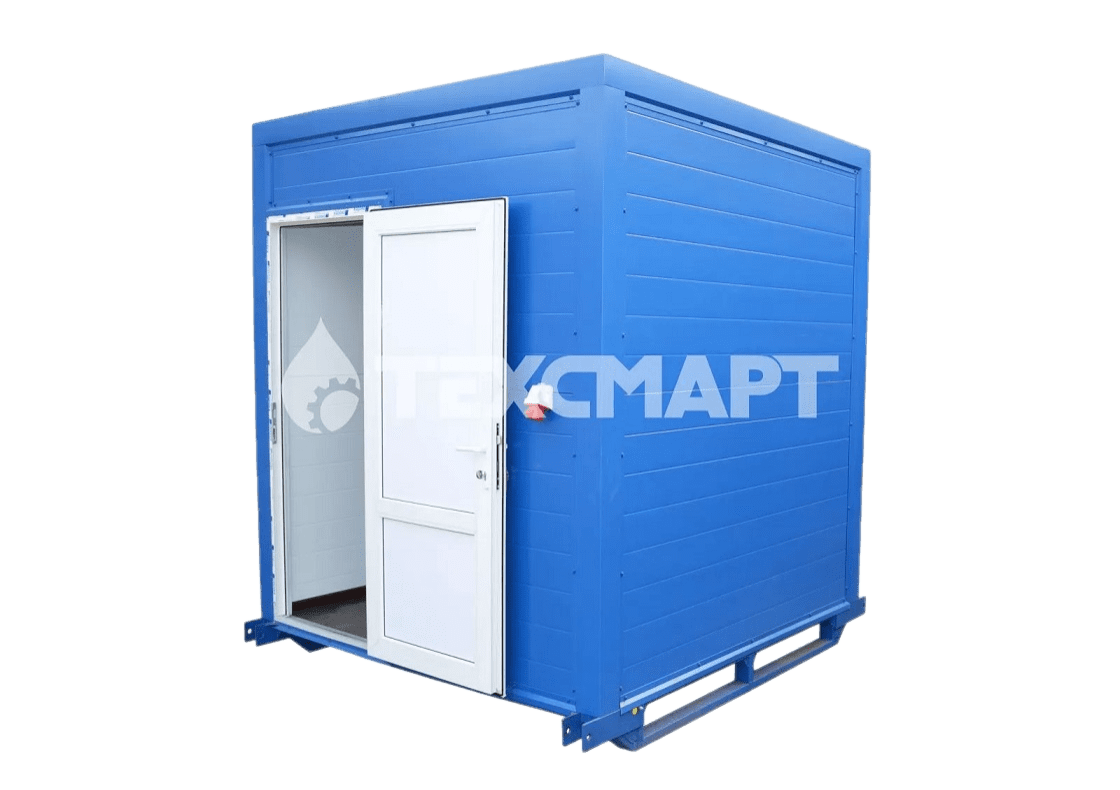

The skid unit with LKI-Tekhno winch in the heat insulated doghouse made of sandwich panels represents a cost effective solution for well testing, logging and dewaxing in the extreme climate conditions. The doghouse can be transported to a well site by helicopter, semitrailer or a tracked all-terrain vehicle. A cable reel installed in the unit allows connecting to a on-site power source making it power independent.
LKI winch drive
- 1
Electro-mechanical drive
The system combines two types of actuators (mechanical and electric), which are mutually redundant. The desired actuator is selected by switching a special clutch. - 2
Electric drive
The torque is transmitted to the drum by an electric motor or gearmotor with a power of 4-5 kW and rated voltage of 220/380V. The presence of a frequency converter makes it possible to precisely regulate the drum speed without steps. - 3
Mechanical drive
The torque is transmitted to the drum from the vehicle engine via the KOM (DOM) by means of cardan and/or chain gears. Directional selection and speed change are made by means of the chassis gearbox (1-5 gears for ascending, reverse for descending) and also through the manual accelerator. - 4
Hydraulic drive
The torque is transmitted to the drum from the vehicle engine via the vehicle's COM using a hydrostatic transmission. Directional change and speed adjustment are performed smoothly and smoothly without step jumps by means of the control unit (joystick).
Trailer laboratory layouts
Technical Description
Base: sled runners to slide across icy or snowy surface
Walls: sandwich panels
Transport ports for towing the doghouse
Floor is multilayered laminated plywood covered with special oil and water repelling durable rubber material / ribbed aluminium
Walls: sandwich panels
Transport ports for towing the doghouse
Floor is multilayered laminated plywood covered with special oil and water repelling durable rubber material / ribbed aluminium
Slickline winch “LKI-Tekhno”
Winch drive: electric 2.2 kW / 4.0 kW
Winch drive control box (for electric drive)
Logging control panel “SKK-Tekhno 305”
Winch drive: electric 2.2 kW / 4.0 kW
Winch drive control box (for electric drive)
Logging control panel “SKK-Tekhno 305”
Generator: stand-alone, power 7.5 kW
Lighting: winch section 220 V and 24 V, wellhead floodlight: 220V
Sockets: 220 V
Reel w/ power cable – 50 m
Reel w/ ground cable and a cable clamp – 50 m
Cable reel
Electric fan heater 220 V, power 2.0 kW
Lighting: winch section 220 V and 24 V, wellhead floodlight: 220V
Sockets: 220 V
Reel w/ power cable – 50 m
Reel w/ ground cable and a cable clamp – 50 m
Cable reel
Electric fan heater 220 V, power 2.0 kW
Bed trunk
Rollout cable reel
Slickline wire feed and a drum rollout hatch
Carrier for spare drum for LKI-Tekhno winch
Rack for memory tools
Rack for lubricator
Slickline wire feed and a drum rollout hatch
Carrier for spare drum for LKI-Tekhno winch
Rack for memory tools
Rack for lubricator
Photo Gallery
FAQs
Yes, we can manufacture geophysical laboratories according to the customer's drawings or develop drawings according to the customer's wishes.
Yes, we install labs on all makes of vehicles.
Yes, we offer a 1-year warranty on labs based on the Block Box chassis.
To order equipment and consult with our experts, you can contact us by phone, email or fill out the feedback form on our website. Our team will be happy to help you find a solution optimised for your needs.
