It is used for installation and orientation of the geophysical cable into the well during geophysical research on logging lifts
By clicking on the button, you consent to the processing of your personal data in accordance with the privacy policy
01
02
Direct equipment manufacturer
We guarantee the quality of our products
Certified equipment
Development according to drawings
Warranty service
Worldwide delivery

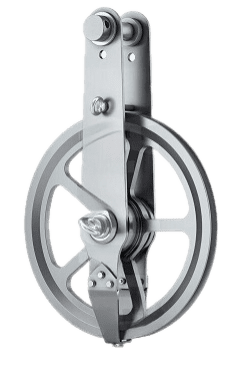

The upper suspension roller RVP-Techno manufactured by TehSmart is designed for insertion and orientation of the geophysical cable into the borehole during logging using the logging hoist.
The structure of the roller provides the possibility to suspend a device up to 130 mm in diameter with attached geophysical cable by passing it through a special ring without having to disassemble the roller.
Passing diameter
Technical features
The maximum permissible diameter of a geophysical cable or rope when working with the geophysical shackle is 12.3 mm.
The roller can withstand a maximum load of 4000 kgf.
Load
Technical Specifications
Parameter;Value
Roller circumference length;1500 mm
Static load;24000 kgf
Operating temperature;-50...+50 degrees centigrade
Overall dimensions;300x530x800 mm
Weight;40 kg
Photo Gallery
FAQs
The maximum load on the roller is 4000 kgf
The outer diameter of the roller is 528 mm
Geophysical cables and wires up to 21.3 mm diameter are suitable for this roller
Yes, we offer a 1 year warranty on the upper suspension roller.
