Mobile Well Testing Lab Mounted on “SOBOL” 4x4 Chassis
Well testing mobile lab fitted on “SOBOL” 4x4 platform with pre-installed winch “LKI-Tekhno” designed for slickline conveyed well intervention whilst well testing, remedial and cleanup operations
By clicking on the button, you consent to the processing of your personal data in accordance with the privacy policy
01
02
Direct equipment manufacturer
We guarantee the quality of our products
Certified equipment
Development according to drawings
Warranty service
Worldwide delivery

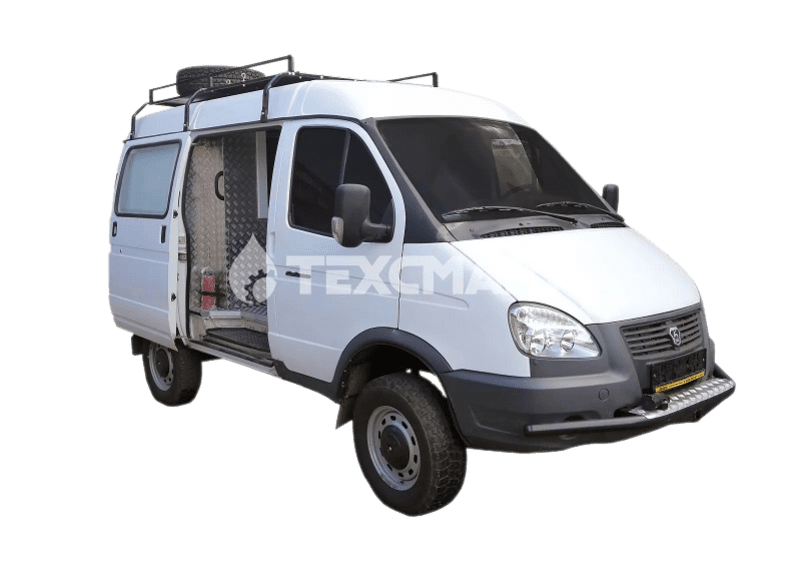

Mobile lab on “SOBOL” 4x4 platform for well logging and testing represents a versatile comfortable all wheel drive truck. “SOBOL” is a high clearance vehicle cost effective for short duration offroad trips to wellsite.
The van is equipped with a slickline winch “LKI-Tekhno” and a backup drum, an automatic slickline spooler, a jib crane. For better comfort the truck has an independent heater and a bed trunk. Winch is operated using either a control box, or a remote control panel. To keep an H2S vapour off the working area a separation wall can be installed between a drum and an operator’s sections. A winch is operated with the aid of remote controls: a friction wheel, a hand and a parking brake levers
The van is equipped with a slickline winch “LKI-Tekhno” and a backup drum, an automatic slickline spooler, a jib crane. For better comfort the truck has an independent heater and a bed trunk. Winch is operated using either a control box, or a remote control panel. To keep an H2S vapour off the working area a separation wall can be installed between a drum and an operator’s sections. A winch is operated with the aid of remote controls: a friction wheel, a hand and a parking brake levers
LKI winch drive
- 1
Electro-mechanical drive
The system combines two types of actuators (mechanical and electric), which are mutually redundant. The desired actuator is selected by switching a special clutch. - 2
Electric drive
The torque is transmitted to the drum by an electric motor or gearmotor with a power of 4-5 kW and rated voltage of 220/380V. The presence of a frequency converter makes it possible to precisely regulate the drum speed without steps. - 3
Mechanical drive
The torque is transmitted to the drum from the vehicle engine via the KOM (DOM) by means of cardan and/or chain gears. Directional selection and speed change are made by means of the chassis gearbox (1-5 gears for ascending, reverse for descending) and also through the manual accelerator. - 4
Hydraulic drive
The torque is transmitted to the drum from the vehicle engine via the vehicle's COM using a hydrostatic transmission. Directional change and speed adjustment are performed smoothly and smoothly without step jumps by means of the control unit (joystick).
Van body

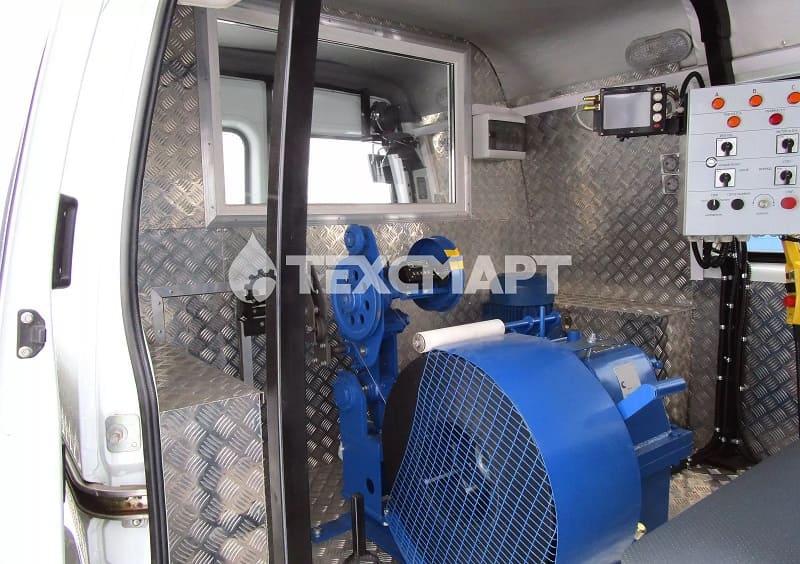

Depending on the configuration, an insulated partition is installed between the operator compartment and the winch compartment to create favourable working conditions for personnel in oil and gas fields. The operator's compartment is equipped with a control panel for the winch, as well as sensors that measure speed, depth and cable tension to effectively monitor the operation process.
The winch compartment is equipped with containers for transporting downhole equipment and special containers for transporting equipment for lubrication units. It also contains a set of drums with tools for their cleaning and a special crane for mounting these drums, supporting maintenance and repair of the mechanisms.
The winch compartment is equipped with containers for transporting downhole equipment and special containers for transporting equipment for lubrication units. It also contains a set of drums with tools for their cleaning and a special crane for mounting these drums, supporting maintenance and repair of the mechanisms.
Sobol laboratory layouts
Technical Description

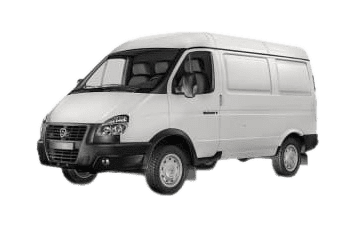

Chassis: GAZ Sobol
Engine: petrol Evotech-2.7 / diesel Cummins ISF
Emission Class: EURO-4
Axle Arrangement: 4х4, with differential lock
Gearbox: mechanical, five-speed
Rear Suspension: heavy duty leaf springs
Engine: petrol Evotech-2.7 / diesel Cummins ISF
Emission Class: EURO-4
Axle Arrangement: 4х4, with differential lock
Gearbox: mechanical, five-speed
Rear Suspension: heavy duty leaf springs
No. of seats: 3 seats + 1 operator’s seat
Layout: one compartment / two compartments
Compartment options: winch / operator’s / generator section
Floor coating: combined special oil and water repelling durable rubber material and zinc plated steel / ribbed aluminium
Internal lining: laminated plywood and/or ribbed aluminium
Windows: two flush windows – one fixed frame in a sliding door / and a gliding one in the opposite (left hand) side
Layout: one compartment / two compartments
Compartment options: winch / operator’s / generator section
Floor coating: combined special oil and water repelling durable rubber material and zinc plated steel / ribbed aluminium
Internal lining: laminated plywood and/or ribbed aluminium
Windows: two flush windows – one fixed frame in a sliding door / and a gliding one in the opposite (left hand) side
Slickline winch “LKI-Tekhno”
Winch drive: electric 2.2 kW / 4.0 kW
Control box
Logging control panel “SKK-Tekhno 305”
Wellhead lubricator: L65-21 / L65-35
Winch drive: electric 2.2 kW / 4.0 kW
Control box
Logging control panel “SKK-Tekhno 305”
Wellhead lubricator: L65-21 / L65-35
Generator: stand-alone, power 6.5, fixed / skid mounted
Lighting: winch section 220 V and 12 V, wellhead floodlight: 12/ 220V
Sockets: 220 V
Reel w/ power cable – 50 m
Reel w/ ground cable and a ground cable clamp – 50 m
Independent heater / Coolant heat core
Electric fan heater 220 V, power 2.0 kW
Lighting: winch section 220 V and 12 V, wellhead floodlight: 12/ 220V
Sockets: 220 V
Reel w/ power cable – 50 m
Reel w/ ground cable and a ground cable clamp – 50 m
Independent heater / Coolant heat core
Electric fan heater 220 V, power 2.0 kW
Bed trunk
Winch operator’s chair
Winch operator’s chair
L- type jib crane with Hand Chain Hoist/lifting truck frame with an eye-bolt
Spare (LKI-Tekhno) winch drum carrier
Racks for memory tools
Lubricator rack
First aid kit
Fire extinguisher
Emergency road triangle
Spark arrester
Spare (LKI-Tekhno) winch drum carrier
Racks for memory tools
Lubricator rack
First aid kit
Fire extinguisher
Emergency road triangle
Spark arrester
Video Presentation
Photo Gallery
FAQs
Yes, we can manufacture geophysical laboratories according to the customer's drawings or develop drawings according to the customer's wishes.
Yes, we install labs with winch on all makes of vehicle chassis.
Yes, we give a 1 year warranty on labs based on the Sobol chassis.
To order equipment and consult with our experts, you can contact us by phone, email or fill out the feedback form on our website. Our team will be happy to help you find a solution optimised for your needs.
