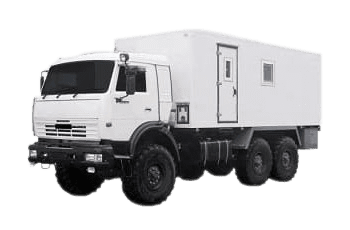

Mobile Well Testing Lab Mounted on “KAMAZ”
Well testing mobile lab fitted on “KAMAZ” 6х6 platform with pre-installed winch “LKI-Tekhno” designed for slickline conveyed well intervention whilst well testing, remedial and cleanup operations
By clicking on the button, you consent to the processing of your personal data in accordance with the privacy policy
01
02
Direct equipment manufacturer
We guarantee the quality of our products
Certified equipment
Development according to drawings
Warranty service
Worldwide delivery

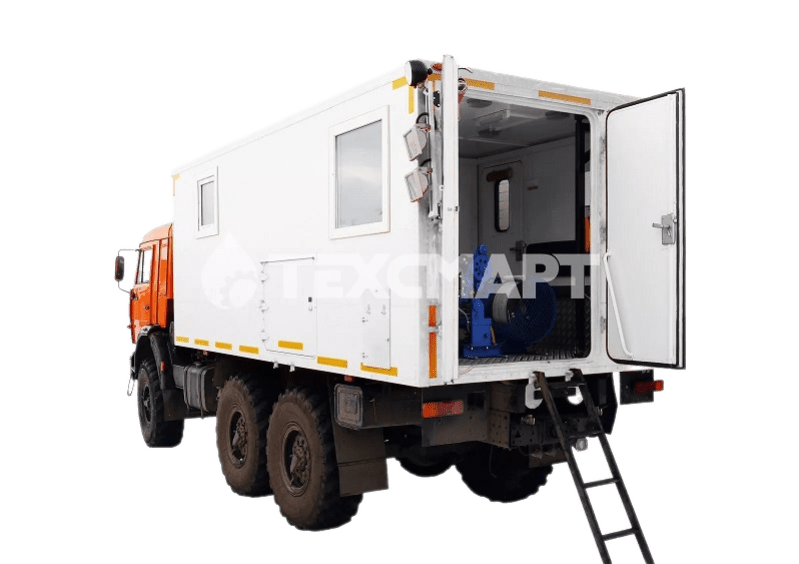

Mobile Lab "KAMAZ" represents an all-terrain cab-after-engine truck. Due to its spacious interior the lab truck is recommended for remote and/or long lasting oilfield trips.
The lab truck offers a convenient working and living area for a wireline/slickline crew – a comfortable heated accommodation compartment equipped with all the tools and accessory need for a job. Transport containers are fitted under the main van body to facilitate safer and comfortable transportation of the tools and lubricator pipes. Uninterruptable power supply is provided by a stand-alone generator installed in a separated section.
Slickline Winch LKI-Tekhno powered by a combination drive enables an operator to engage either an electric or a mechanical drive by alternating from one to another to adapt to a specific type of a downhole operation.
The lab truck offers a convenient working and living area for a wireline/slickline crew – a comfortable heated accommodation compartment equipped with all the tools and accessory need for a job. Transport containers are fitted under the main van body to facilitate safer and comfortable transportation of the tools and lubricator pipes. Uninterruptable power supply is provided by a stand-alone generator installed in a separated section.
Slickline Winch LKI-Tekhno powered by a combination drive enables an operator to engage either an electric or a mechanical drive by alternating from one to another to adapt to a specific type of a downhole operation.
LKI winch drive
- 1
Electro-mechanical drive
The system combines two types of actuators (mechanical and electric), which are mutually redundant. The desired actuator is selected by switching a special clutch. - 2
Electric drive
The torque is transmitted to the drum by an electric motor or gearmotor with a power of 4-5 kW and rated voltage of 220/380V. The presence of a frequency converter makes it possible to precisely regulate the drum speed without steps. - 3
Mechanical drive
The torque is transmitted to the drum from the vehicle engine via the KOM (DOM) by means of cardan and/or chain gears. Directional selection and speed change are made by means of the chassis gearbox (1-5 gears for ascending, reverse for descending) and also through the manual accelerator. - 4
Hydraulic drive
The torque is transmitted to the drum from the vehicle engine via the vehicle's COM using a hydrostatic transmission. Directional change and speed adjustment are performed smoothly and smoothly without step jumps by means of the control unit (joystick).

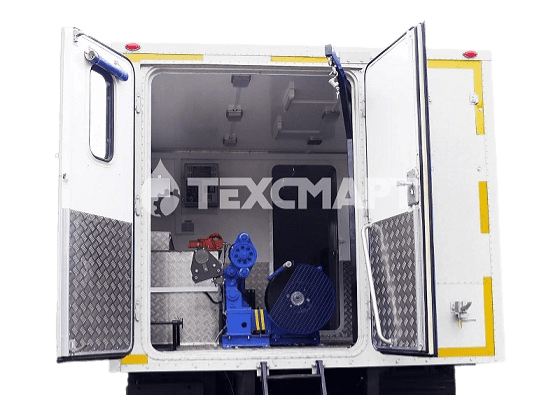

Van body
The body of the mobile laboratory van is made of innovative multilayer sandwich panels of different types, created by pouring or gluing. The exterior finish of the panels is represented by durable duralumin sheet or metal cladding. The internal finish consists of moisture resistant plywood covered with reinforced plastic.
Depending on the version, the operator's living compartment is separated from the winch working space by a thermally insulated partition, providing comfortable working conditions for personnel in oil and gas fields. The operator's compartment is equipped with a winch control panel and speed, depth and wire tension sensors for monitoring the progress of work. There is also a kitchen block with all necessary equipment and a sofa for employees to relax.
The winch workspace is equipped with containers for transporting downhole equipment and special containers for transporting lubricator units. There is a set of drums with weeding and a crane-jib for drum installation.
The winch workspace is equipped with containers for transporting downhole equipment and special containers for transporting lubricator units. There is a set of drums with weeding and a crane-jib for drum installation.
Laboratory layouts
Technical description
Chassis: KAMAZ 5350(43114) / 43118
Engine: turbo diesel, 240 hp
Emission Class: Euro-4
Axle Arrangement: 6х6
Gearbox: mechanical, ten-speed
Transfer case: mechanical, 2-range with central differential lock
Rear suspension: leaf spring
Engine: turbo diesel, 240 hp
Emission Class: Euro-4
Axle Arrangement: 6х6
Gearbox: mechanical, ten-speed
Transfer case: mechanical, 2-range with central differential lock
Rear suspension: leaf spring
Body: frame based rightangled structure with a flat roof made of sandwich panels
Layout: one compartment / two compartment / three compartment design Compartments: accomodation / winch / operator’s sections
Windows: accommodation and winch section
Slickline feed: side hatch (port for feeding slickline)
External lining: clad metal with polymeric powder coating
Internal lining: laminated plywood and/or ribbed aluminium
Floor coating: zinc plated steel / special oil and water repelling durable rubber material / ribbed aluminium
Tooling box: under the truck body (2 ea.)
Generator section: side single-door hinged hatch
Spare wheel carrier: in the drum section / outside the truck body
Layout: one compartment / two compartment / three compartment design Compartments: accomodation / winch / operator’s sections
Windows: accommodation and winch section
Slickline feed: side hatch (port for feeding slickline)
External lining: clad metal with polymeric powder coating
Internal lining: laminated plywood and/or ribbed aluminium
Floor coating: zinc plated steel / special oil and water repelling durable rubber material / ribbed aluminium
Tooling box: under the truck body (2 ea.)
Generator section: side single-door hinged hatch
Spare wheel carrier: in the drum section / outside the truck body
Slickline winch “LKI-Tekhno”
Winch drive: electric / mechanical / combination
Winch drive control box: electric
Backup indication box
Logging control panel “SKK-Tekhno 305”
Wellhead lubricator: L65-21 / L65-35
Winch drive: electric / mechanical / combination
Winch drive control box: electric
Backup indication box
Logging control panel “SKK-Tekhno 305”
Wellhead lubricator: L65-21 / L65-35
Board with RCCB (residual current circuit breaker) and RCD (residual current device) in the drum section
Power cable reel w/ cable – 50 m
Ground clamp with wire - 50 м
Generator: stand-alone, power 6.5 / 8.0 kW on a rollout skid in the generator section
Lighting of the truck, wellhead floodlight: 220/24 V
Sockets: 220 V
Reel w/ winch drive power cable
Stand-alone diesel heater PLANAR /WEBASTO
Heater core OS-7
Electric fan heater 220 V, power 2.0 kW
Air conditioner
Power cable reel w/ cable – 50 m
Ground clamp with wire - 50 м
Generator: stand-alone, power 6.5 / 8.0 kW on a rollout skid in the generator section
Lighting of the truck, wellhead floodlight: 220/24 V
Sockets: 220 V
Reel w/ winch drive power cable
Stand-alone diesel heater PLANAR /WEBASTO
Heater core OS-7
Electric fan heater 220 V, power 2.0 kW
Air conditioner
Operator’s chair
Bed trunk
Folding sleeper shelf above the bed trunk
Fixed table with a folding section
Table with a table top and a sink
Hand washing point with water heater above the sink
Vise workbench with pullout drawers
Wardrobe
Bed trunk
Folding sleeper shelf above the bed trunk
Fixed table with a folding section
Table with a table top and a sink
Hand washing point with water heater above the sink
Vise workbench with pullout drawers
Wardrobe
L- type jib crane with Hand Chain Hoist
Spare (LKI-Tekhno) winch drum carrier
Racks for memory tools
Lubricator rack
Wheel blocks - 1 set
First aid kit
Fire extinguisher - 2 ea.
Emergency road triangle
Spark arrester
Spare (LKI-Tekhno) winch drum carrier
Racks for memory tools
Lubricator rack
Wheel blocks - 1 set
First aid kit
Fire extinguisher - 2 ea.
Emergency road triangle
Spark arrester
Photo Gallery
FAQs
Yes, we can manufacture laboratories according to customer drawings or develop drawings tailored to the customer's requirements.
Yes, we install laboratories on all makes of vehicle chassis.
Yes, we give a 1-year warranty on laboratories based on KAMAZ chassis.
