Well testing mobile lab fitted on “UAZ” platform with pre-installed winch “LKI-Tekhno” designed for slickline conveyed well intervention whilst well testing, remedial and cleanup operations
By clicking on the button, you consent to the processing of your personal data in accordance with the privacy policy
01
02
Direct equipment manufacturer
We guarantee the quality of our products
Certified equipment
Development according to drawings
Warranty service
Worldwide delivery

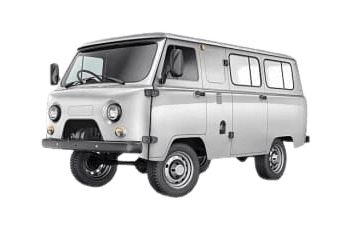

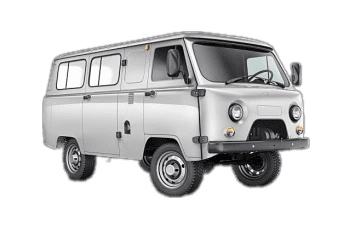

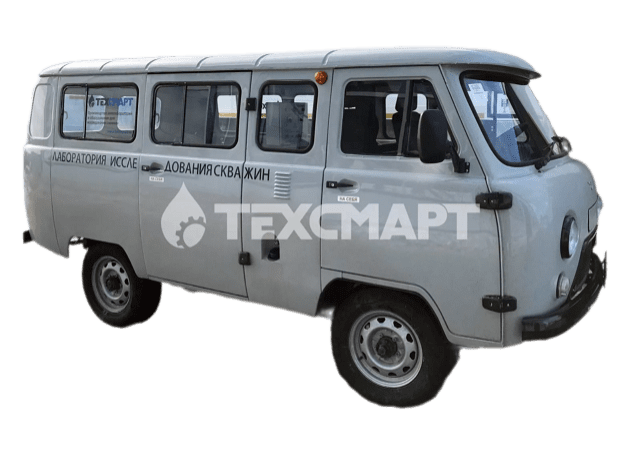

Mobile lab on UAZ 4x4 platform (window van) is designed for well logging, testing and is cost effective for short duration offroad trips to wellsite.
The van is equipped with a slickline winch and a backup drum, automatic slickline spooler, a jib crane. Winch is operated using either a control box, or a remote control panel. An option with a winch driven by PTO of the truck can be available.
The system combines two types of actuators (mechanical and electric), which are mutually redundant. The desired actuator is selected by switching a special clutch.
2
Electric drive
The torque is transmitted to the drum by an electric motor or gearmotor with a power of 4-5 kW and rated voltage of 220/380V. The presence of a frequency converter makes it possible to precisely regulate the drum speed without steps.
3
Mechanical drive
The torque is transmitted to the drum from the vehicle engine via the KOM (DOM) by means of cardan and/or chain gears. Directional selection and speed change are made by means of the chassis gearbox (1-5 gears for ascending, reverse for descending) and also through the manual accelerator.
4
Hydraulic drive
The torque is transmitted to the drum from the vehicle engine via the vehicle's COM using a hydrostatic transmission. Directional change and speed adjustment are performed smoothly and smoothly without step jumps by means of the control unit (joystick).

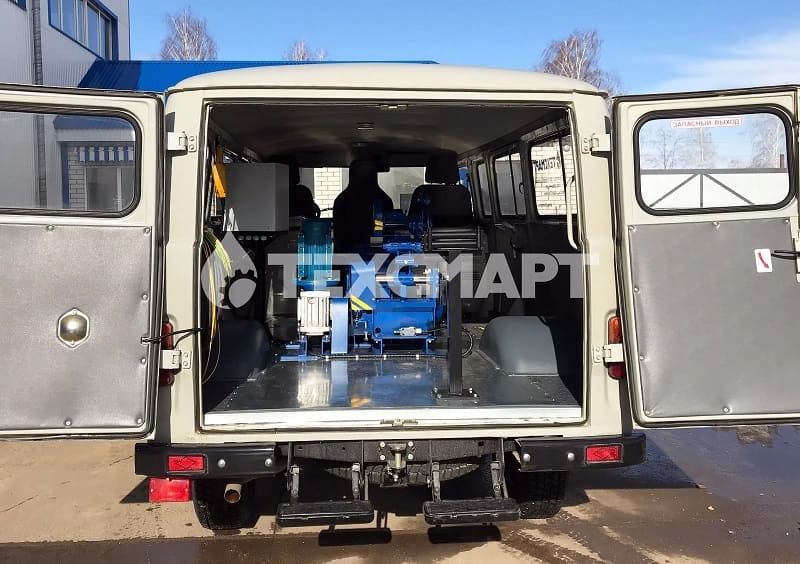

Van body
Depending on the configuration, an insulated partition is installed between the operator compartment and the winch compartment to create favourable working conditions for personnel in oil and gas fields. The operator's compartment is equipped with a control panel for the winch, as well as sensors that measure speed, depth and cable tension, which allows efficient control of the operation process.
The winch compartment is equipped with containers for transporting downhole equipment and special containers for transporting equipment for lubrication units. It also contains a set of drums with tools for their cleaning and a special crane for mounting these drums, supporting maintenance and repair of the mechanisms.

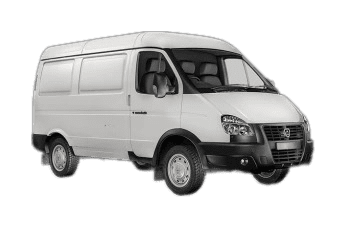

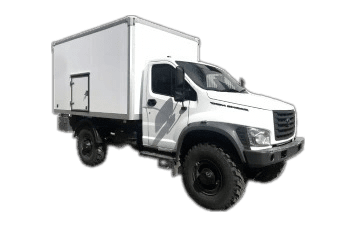

GAZ laboratory layouts
Technical Description
Chassis: UAZ window van Engine: ZMZ Axle Arrangement: 4х4 Gearbox: mechanical, five-speed Transfer case: 2-range with part-time 4WD
No. of seats: 2 seats + 1 operator’s seat Layout: one compartment / two compartments Compartment options: winch section/ trunk section Floor coating: combined special oil and water repelling durable rubber material and zinc plated steel / ribbed aluminium Internal lining: laminated plywood and/or ribbed aluminium
Slickline winch “LKI-Tekhno” Winch drive: electric / mechanical (UAZ PTO) Control box: electric Backup indication box Logging control panel “SKK-Tekhno 305” Wellhead lubricator: L65-21 / L65-35
Lighting: winch section 220 V and 12 V, wellhead floodlight: 12/ 220V Sockets: 220 V Reel w/ power cable – 50 m Reel w/ ground cable and a gound cable clamp – 50 m Electric fan heater 220 V, power 2.0 kW Coolant heat core
Short bed trunk Operator’s table Winch operator’s chair
L- type jib crane with Hand Chain Hoist/lifting truck frame with an eye-bolt Spare (LKI-Tekhno) winch drum carrier Racks for memory tools Lubricator rack Emergency road triangle First aid kit Fire extinguisher Spark arrester
