To measure pressure and temperature at the mouth of the oil well and preserve the received data in the built -in memory of the device with their transmission through the communication cable for further processing and analysis on the user's computer
By clicking on the button, you consent to the processing of your personal data in accordance with the privacy policy
01
02
Direct equipment manufacturer
We guarantee the quality of our products
Certified equipment
Development according to drawings
Warranty service
Worldwide delivery
• measurement of pressure and temperature on the basis of a previously given scheme of work, which includes up to 8 tasks for work, with various options for starting measurements (from time, pressure, temperature) • preservation of accumulated measurements in energy -dependent memory • setting the start time of the recording in memory of the device • direct measurement mode • task of interval and recording parameters • inclusion/continuation of the Events: -exceeding/falling a given pressure value, temperature -set recording time -through a given time -pressing a magnetic button
Pressure measurement range;0...60 (100) Maa
Temperature measurement range;-40° ...+85°С
Recording frequency;1 sec-1 hour, 1/10 sec
Filling time when working with a frequency of 1 second;60 (120) days
Operating temperature range;-40° ...+85°С
Interface;USB
Autonomous work time;300 days
Dimensions;140 х 34 mm
Degree of protection;IP68
Manometer-termometer Usteva
Magnetic keychain for working with devices
Special key to open the back cover
Software
Spare rubber sealing ring for the back cover
Lisocl2 (lithium-type) battery, size AA
Passport and operating manual
Case for storing the device and accessories
Standard kit
Video Presentation
Photo Gallery
FAQs

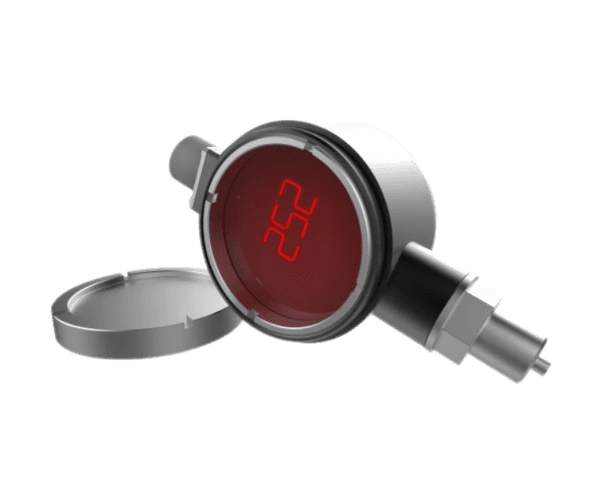

Wellhead manometer-thermometer MTU-Techno is designed for pressure up to 100 MPa, depending on version
MTU-Techno is capable of operating in autonomous mode for 300 days.
Yes, we give a 1-year warranty on the MTU-Techno wellhead gauge-thermometer.
To order equipment and consult with our experts, you can contact us by phone, email or fill out the feedback form on our website. Our team will be happy to help you find a solution optimised for your needs.
