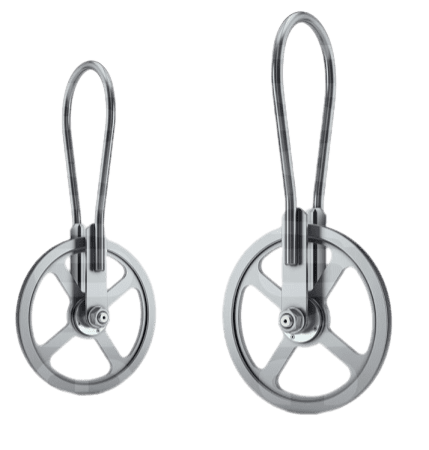

Upper sheave (lifting yoke)

Used for reeving and directing wireline cable into a well whilst performing well logging with a logging cabin/wireline truck
By clicking on the button, you consent to the processing of your personal data in accordance with the privacy policy
01
02
Direct equipment manufacturer
We guarantee the quality of our products
Upper sheave (lifting yoke)
Certified equipment
Development according to drawings
Warranty service
Worldwide delivery
Designed for reeving and guiding load carrying wireline cables while running in and retrieving tools and instruments out of a well.

Top sheave suspension is securely attached above a lubricator with a crane/loader crane truck (KMU) hook or a hook of a travelling block of a drilling or workover rig. The sheave is attached to the hook using slings or directly with a yoke.
Upper sheave (lifting yoke)
Geophysical rollers
Used for installation and orientation of the geophysical cable into the well during geophysical research on logging lifts
Used for reeving and directing wireline cable into a well whilst performing well logging with a logging cabin/wireline truck
Used for reeving and guiding wireline cable into a well whilst well logging with a logging cabin
Серьга геофизическая

Suspended sheave (lifting yoke)

The structure of the roller provides the possibility to suspend a device up to 130 mm in diameter with attached geophysical cable by passing it through a special ring without having to disassemble the roller.

Passing diameter

Technical features

The maximum permissible diameter of a geophysical cable or rope when working with the geophysical shackle is 12.3 mm.

Cable diameter

The roller can support a maximum load of no more than two tonnes.

Load
