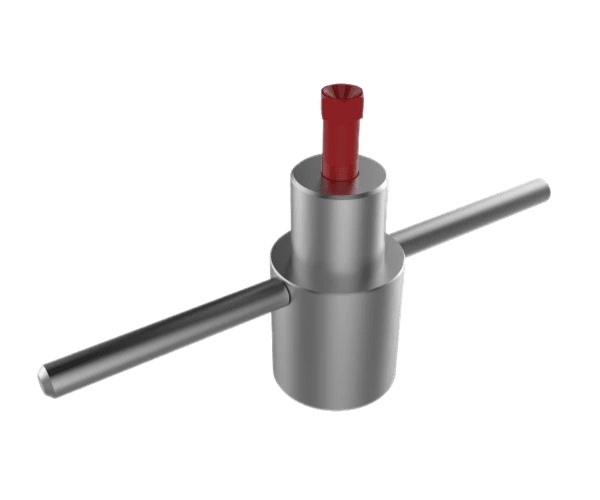

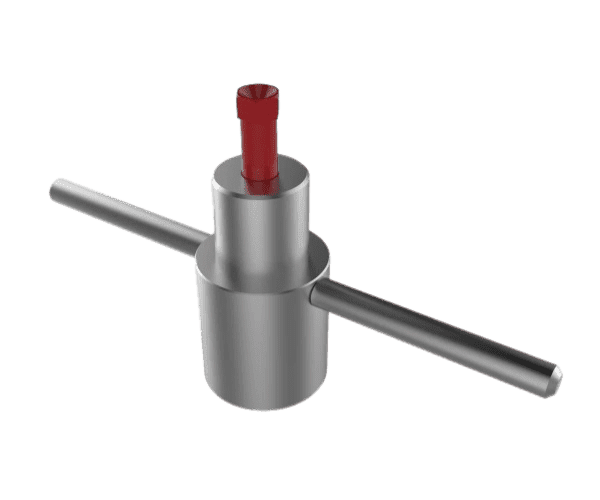

Slickline stuffing box

Used for sealing lubricator whilst tripping during slickline well logging and dewaxing

By clicking on the button, you consent to the processing of your personal data in accordance with the privacy policy

01

02

Direct equipment manufacturer

We guarantee the quality of our products

Certified equipment

Development according to drawings

Warranty service

Worldwide delivery

Scraper slickline is sealed due to compression of elastic sealing elements.

Compression strength can be regulated by screwing a seal screw. The torque of the screw should allow a slickline free movement while keeping it sealed.

• Can be designed for connecting to 60/73/89 mm tubing lubricator
• A top sheave of the lubricator can be fitted onto the body of the stuffing box .
• Sealing elements are shipped as part of the set. The seals are heavy duty and allow cleaning a wire while keeping a wellhead sealed.
• The sealing elements should be regularly inspected to check for damage and wear.
• Upon Client’s request a sub with a port for bleedoff valve can be installed to allow pressure bleedoff while operating using lubricator with a preventer.

Technical specifications

The geophysical cable or wire is placed in the gland device, after which the gland head is screwed onto the locking chamber of the lubricator and tightened to the stop. The pressure bolt of the stuffing box head is tightened by manually pushing on the stuffing box packing. The gland packing clamps the wire when deformed.
