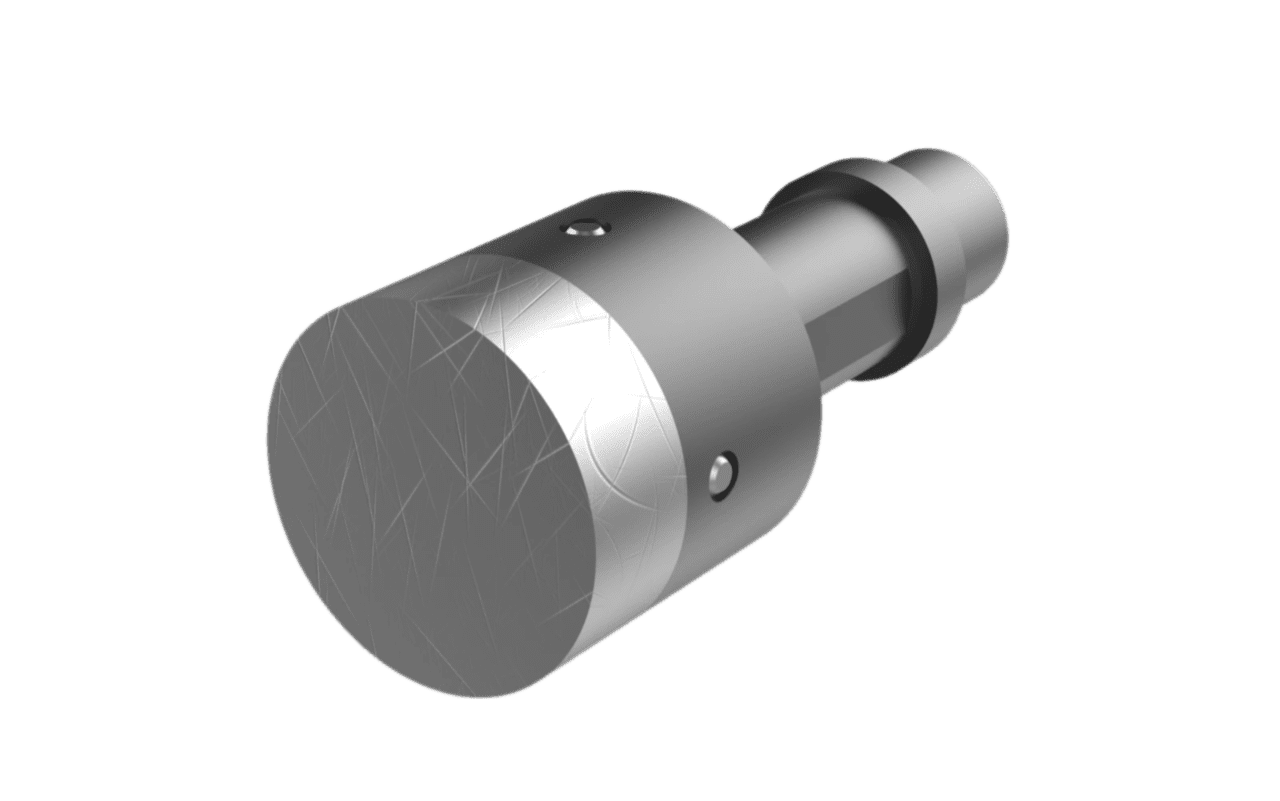

Impression block “PST”

Impression block “PST” is used prior to commencing fishing operations and is designed for obtaining an impression of the shape of the top head (rope socket) of a lost tool or scraper

By clicking on the button, you consent to the processing of your personal data in accordance with the privacy policy

01

02

Direct equipment manufacturer

We guarantee the quality of our products

Certified equipment

Development according to drawings

Warranty service

Worldwide delivery

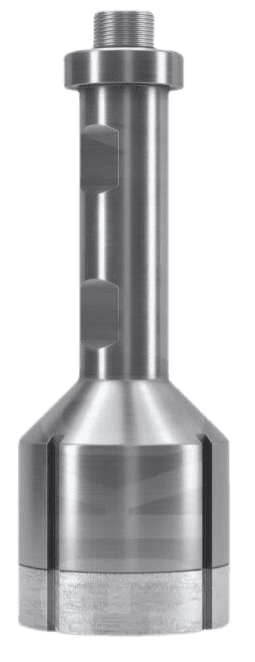

Impression block “PST” is used before the start of fishing operations and is designed to obtain an impression of the shape of the top (rope socket) of a lost instrument or scraper on the butt end of the block when selecting and preparing a fishing tool for a run in the well and determining fishing procedure on the well.

It consists of a housing with an M27x1. 5 connection thread and a soft lead insert on the lower end which is rigidly fixed in the housing. According to the impression obtained due to the difference in the plasticity of the lead insert and the object being examined in the well, you can choose the most suitable fishing tool: a collet catcher or an overshot.

The impression block is a low-cost fishing tool due to its simple design and is supplied with sets of lead blocks of different diameters with the number of duplicates of each diameter as required by Client.

When selecting the diameter, it is necessary to take into account the presence and internal borehole diameter of the no-go ring (scraper catcher, Rudak ring, stop ring) installed in the tubing string.

It is possible to manufacture any diameter with any connecting thread according to the Customer's requirements.

Technical Specifications

For tubing NKT-60: 28, 30, 32, 34, 36, 38, 40, 42, 44, 46 mm – set of 2 ea. per each size

For tubing NKT-73: 38, 40, 42, 44, 46, 48, 50, 52, 54, 56 mm – set of 2 ea. per each size

For tubing NKT-89: 56, 58, 60, 62, 64, 66, 68, 70, 72, 74 mm – set of 2 ea. per each size

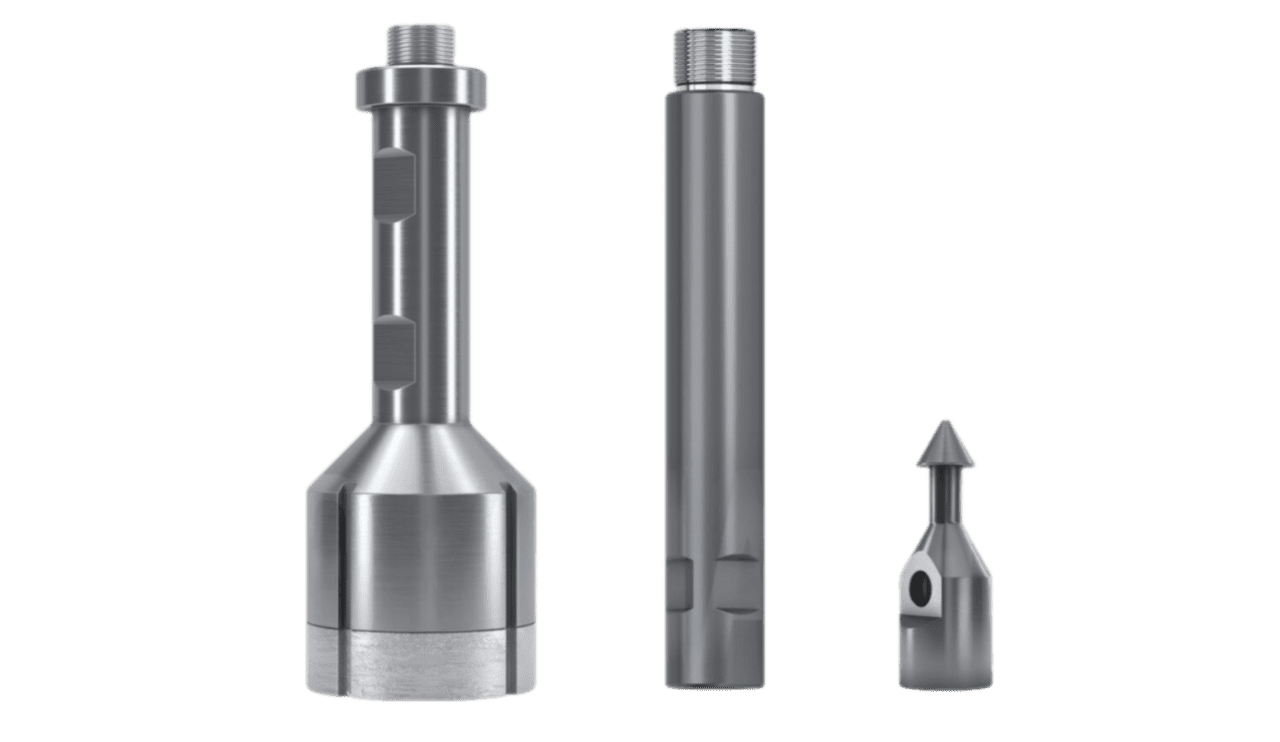

Standard Kit

Descent:
The set is slowly lowered into the borehole until it contacts the target device.

Preparation:
The seal is attached to the rope wire or cable, forming a single structure with the load.

1

Obtaining an impression:
Under the weight of the load, the soft part of the print contacts the device, creating an impression of its attachment assembly.

Analysis:
The resulting impression is analysed to pinpoint the exact location of the device attachment assembly.

Extraction:
The seal is retrieved from the well.

Lowering the catching tool:
Based on the information received, the trapping tool is lowered to grab and retrieve the instrument.

An impression block complete with weight and rope socket is used to locate the downhole tool. The process of determining the location:

Recommendation: It is recommended to have a set of lead seals for quick replacement of used seals.
