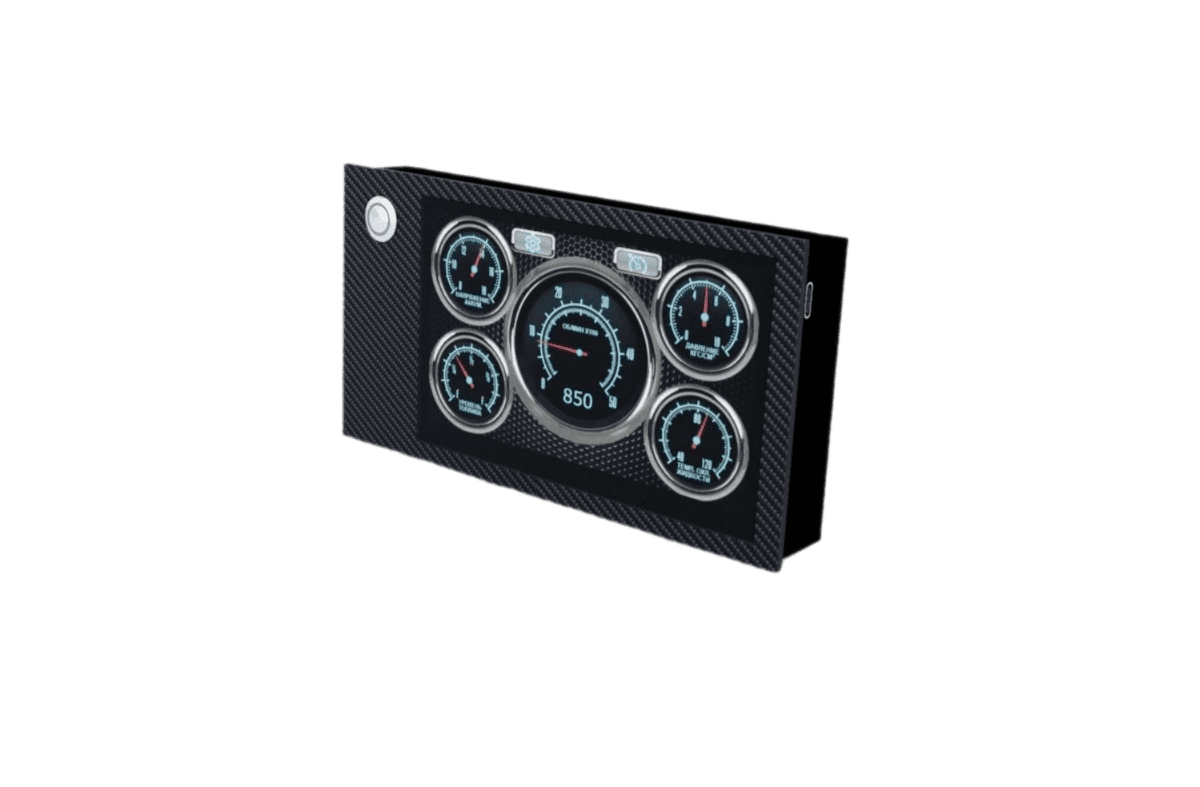

DPP-1 dashboard doubler

The DPP-1 dashboard doubler is designed to read vehicle data via digital bus and duplicate it on an additional panel. The auxiliary panel can be installed in any part of the vehicle.
By clicking on the button, you consent to the processing of your personal data in accordance with the privacy policy
01
02
Direct equipment manufacturer
We guarantee the quality of our products
DPP-1 dashboard doubler
Certified equipment
Development according to drawings
Warranty service
Worldwide delivery
DPP-1 device is designed to receive data via digital CAN channel from the vehicle, containing the following information: engine speed, engine temperature, engine oil pressure, on-board voltage, fuel level.

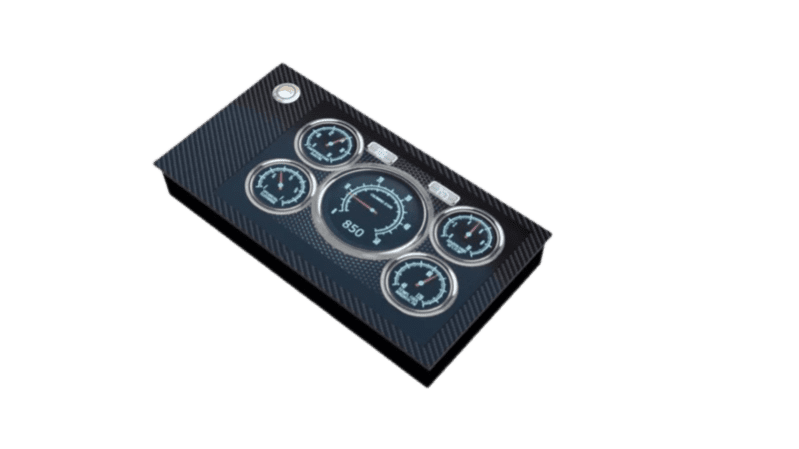

dashboard doubler
At the moment there are three main types of vehicles on the basis of which PCS, LCS and SCS are most often manufactured: KAMAZ, GAZon NEXT and URAL. The number of supported vehicles will increase. We plan to add support for SHACMAN and FAW trucks. Adding support for a new vehicle to the device is easy and can be done by flashing the device without having to disassemble it or send it to the manufacturer.

Compatibility

Compatibility
There is also an option to change the brightness of the screen for convenient use in the dark.
The engine speed control function is implemented on both vehicles with cruise control and those equipped with an electronic accelerator pedal.
1
The device is characterised by low power consumption in standby mode, which prevents battery discharge if the device is not disconnected from the on-board network.
2

Additionally

The device is presented in a compact housing with dimensions (L/W/H) (mm): 220/115/35.
User interface in Russian and English.
3
The unit can be mounted either on a panel or on a flexible bracket, providing a variety of mounting options.
5
4
6
The simple procedure of updating the device, which does not require special software and drivers, can be done in a few steps. All you need is a USB Type-C cable, one end of which is connected to the device and the other end to your computer. The system will automatically recognise the newly connected device as an external drive. Then it is enough to transfer the file with the new firmware to this medium and restart the device. The process is complete and the updated functionality is ready for use!

The dashboard doubler is updated both on the vehicle, with power and signal lines connected, and on the desktop, outside the vehicle. In the latter case, power is supplied via a USB Type-C connector, eliminating the need for additional 12 or 24 volt power supplies. For quick installation and removal of the device, spring-loaded push contacts are provided to prevent the connection from loosening over time.

All of the steps above will ensure you have a modern, hassle-free device functionality.

Firmware

Buy
Technical specifications
Compatible with both petrol and diesel engines with 12 or 24 volts on-board power supply. Control of the device is realised by means of a single button (activation/deactivation) and a 7-inch touchscreen display equipped with a capacitive sensor, which guarantees a lightning-fast response to presses and high precision. Among the features of the screen are the following:
