Wellhead sampling tool “KZHO”

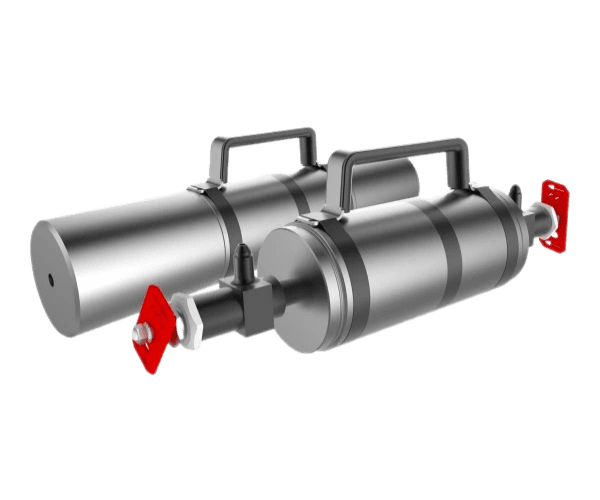

Single liquid container for collection, storage and transportation of liquid and gas

By clicking on the button, you consent to the processing of your personal data in accordance with the privacy policy

01

02

Direct equipment manufacturer

We guarantee the quality of our products

Certified equipment

Development according to drawings

Warranty service

Worldwide delivery

Designed for selection, storage and transportation of liquid, gas and condensate under pressure of up to 35 MPa (350 kgf/cm2) at temperature ranging from -20°С to +100°С.

A key design component is a body (bottle) with two identical globe valves made of stainless steel and attached to the ends of the bottle for inlet and outlet of the analyzed hydrocarbon phase. Two protection caps protect the valves from mechanical damage during transportation. The caps are screwed to the body of the container. To ensure comfortable transportation a handle is attached to the body with two clamps.

Content is displaced from the container into analyzing device with some neutral liquid, water, brine.
Volume of the container – up to 400 cm3

To take a sample from the separator, use a cylinder through which the hydrocarbon phase to be tested is passed with the valves open until the amount of phase exceeds five times the volume of the working cavity of the container. Then close the outlet valve and, having reached the required pressure, close the second valve.

Transfer the sample phase from the sampler to the container by displacing neutral liquid through an open outlet valve, keeping the pressure constant. To transfer the sample to the research apparatus, use the method of displacing the sample from the container using neutral liquid pressurised through one of the valves.

Technical Specifications
