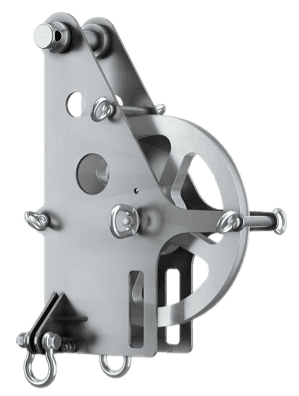

The upper pull-off roller RVO-Techno (block-balance) manufactured by TechSmart is designed to guide a geophysical cable or rope while working with logging and geophysical equipment. Its design allows to lift the device with diameter up to 130 mm together with the cable by passing them through a special hole without disassembling the roller.
The RVO-Techno roller is used to create a certain tension of the cable when it enters the lubricator through the sealer during geophysical and hydrodynamic surveys. The roller is securely attached above the lubricator using a crane-manipulator (CMU) or on the rig's hoist system. It can be lifted by the hook using slings or directly hooked onto the hook through a special hole.
Lifting Yoke for a Top Sheave Used for attaching a top sheave to a lifting mechanism while performing wireline operations with running in and out of a well
The RVO-Techno roller is manufactured to suit the diameter of the cable (rope) to be passed and the load from 6 to 20 tonnes. The roller can be mounted on an axle or on a shackle.
Passing diameter
Technical features
RVO-Techno design allows to suspend the device with diameter up to 130 mm together with the geophysical cable by passing it through the shackle without disassembling the roller
The roller is designed for loads from 14 to 24 tonnes, depending on the required parameters. The maximum diameter of the cable or rope to be guided is 6.3 to 24 mm
Loads
Technical Specifications
Parameter;Value
Circumference of the sheave;1000 mm
Static load;80 kN
Rotation frequency under load;100 rev/min
Operating temperature;-40…+50 deg.
Size;660х400х270 mm
Weight;30 kg
Photo Gallery
FAQs
The maximum load on the roller is 24000 kgf
The outer diameter of the roller is 528 mm
Geophysical cables and wires up to 21.3 mm diameter are suitable for this roller
Yes, we offer a 1 year warranty on the upper idler roller.
