For slickline conveyed logging and scraping of oil and gas wells with an option of alternating use of electric and mechanical drive
By clicking on the button, you consent to the processing of your personal data in accordance with the privacy policy
01
02
Direct equipment manufacturer
We guarantee the quality of our products
Certified equipment
Development according to drawings
Warranty service
Worldwide delivery

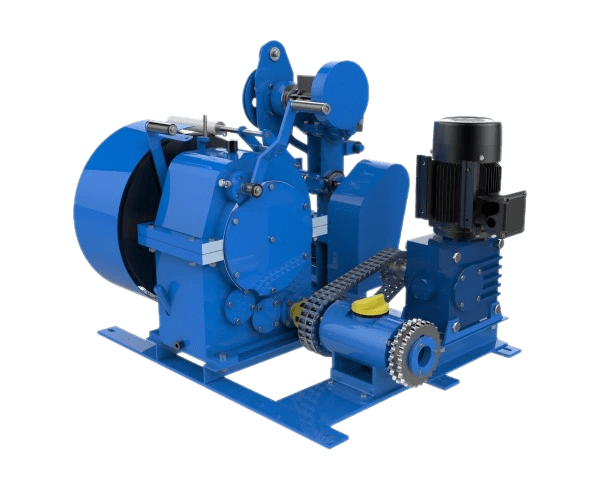

“LKI-Techno” logging winch combination drive is used for running in memory tools, downhole samplers and paraffin scrapers and pulling them out of a well to the depth of up to 7000 m as part of dewaxing operations.
The winch features a clutch (friction disk) which allows you to avoid breaking in case of exceeding the wire tensile strength limit during trip to surface. The clutch discs are smoothly engaged under control by an operator when at work. The clutch also provides a “free run” of the tool under its own weight when the drive is unlocked. To slow down the drum during a free run, a pad-type handbrake is used. Parking brake represents a ratchet mechanism that fixes the run tool string at the required depth. For safe operation and to avoid hitting of the pulled tool against stuffing box, the tool is pulled to surface by means of a manual drive.
Automatic wire spooler with a measuring roller is part of the winch, and allows you to evenly lay wire under tension around the drum LKI-Techno is equipped with a mechanical speed counter SO-35 to track the depth of running a tool.
Upon Client’s request a Logging Control System “CKK-Techno 305” for monitoring acquisition of parameters of tripping operations followed by subsequent analysis on a computer or smartphone.
For slickline conveyed logging and scraping of oil and gas wells with electric drive
Electric drive
For slickline conveyed logging and scraping in oil and gas wells with mechanical drive from truck pto (power takeoff)
Mechanical drive

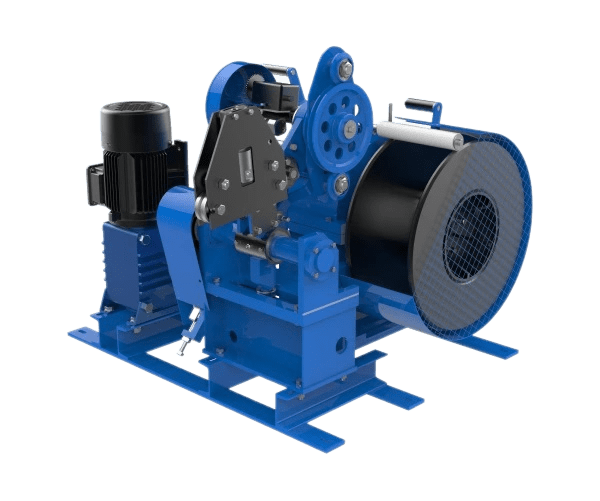

For slickline conveyed logging and scraping of oil and gas wells with an option of alternating use of electric and mechanical drive
Combination drive
A set of removable drums with wire allows you measuring pressure with downhole gauges simultaneously in several wells. Operator runs a tool into a well and wheels the drum out of the logging truck leaving it on a wellsite.
Controlled tool retrieval process reduces the chance of breaking wire (slickline). As an operator can reduce the torque transmitted to the output shaft of the winch using a clutch.
Parallel slickline operations
Failure risk reduction
Features
The clutch (clutch) in the winch gearbox allows you running tools and scrapers into wells under its own weight. This helps saving diesel of a standalone electric generator on flowing wellstock with no access to the 220V/380V power system.
High accuracy of measuring depth and speed of the wire movement is achieved due to no wire slipping on the measuring roller.
Load capacity (wire not included);min 300 kg
Pulling speed;from 1 m/h to 10 000 m/h
Wire laying/spooling;mechanical / automatic
Overall dimensions (LxWxH);800х960х850 mm
Weight of the winch with wire and drum;415 kg
Weight of the winch without wire and drum;250 kg
Drum diameter and weight, standard / extended;Ø 470mm - 45 kg / Ø 570mm - 53 kg
Wire used;ГОСТ 7372-79, Ø 1.8 - 2.5 mm
Standard drum capacity / weight;6000м - Ø 1.8mm, 4000m - Ø 2.2mm / 165 kg
Increased drum capacity / weight;7000м - Ø 1.8mm, 5000m - Ø 2.2mm / 203 kg
Climatic category;UKhL3 +40...-60°С GOST15150-69

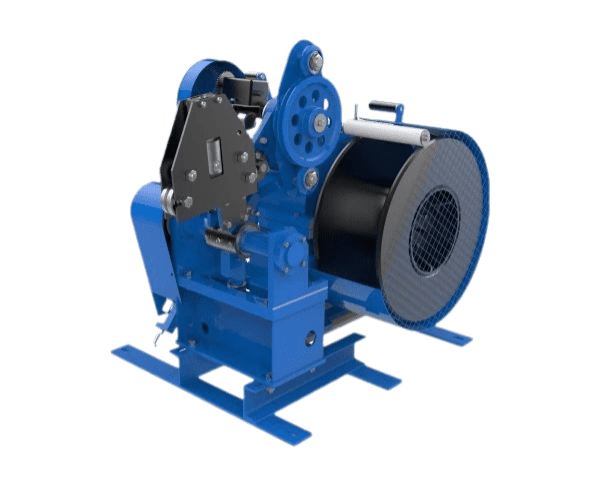

Pulling speed
Drive type
Speed
Mechanical drive
up to 10 000 m/h
Gearmotor 2.2 / 4.0 kW, 1 500 rpm
up to 2 500 m/h
Gearmotor 2.2 / 4.0 kW, 3 000 rpm
up to 5 500 m/h
Gearmotor 2.2 / 4.0 kW, 3 000 rpm
up to 10 000 m/h

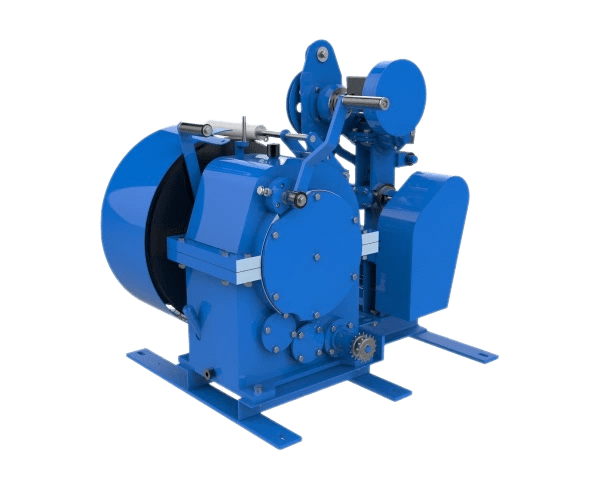

Standard kit
LKI-Tekhno research winch with combination drive.
Winch gearbox with a friction disc
Automatic/mechanical wire spooler
Mechanical speed/revolution counter SO-35
Drums for scraper wire
Gear motor (electric motor)
Controls behind separation wall (as agreed with Client)
LKI-Techno winches are manufactured with electric, mechanical and combined drives.
LKI-Techno with combined drive are designed for borehole testing up to 7000 metres deep
LKI-Techno with combined drive utilises an automatic or mechanical wire stacker
Yes, we give a 1 year warranty on LKI-Techno with combined drive.
