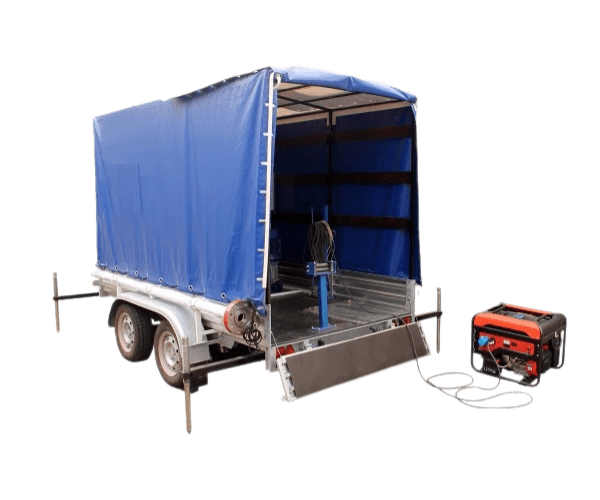

Well testing lab mounted on trailer
Well testing mobile lab fitted on trailer platform with pre-installed winch “LKI-Tekhno” designed for slickline conveyed well intervention whilst well testing, remedial and cleanup operations
By clicking on the button, you consent to the processing of your personal data in accordance with the privacy policy
01
02
Direct equipment manufacturer
We guarantee the quality of our products
Certified equipment
Development according to drawings
Warranty service
Worldwide delivery

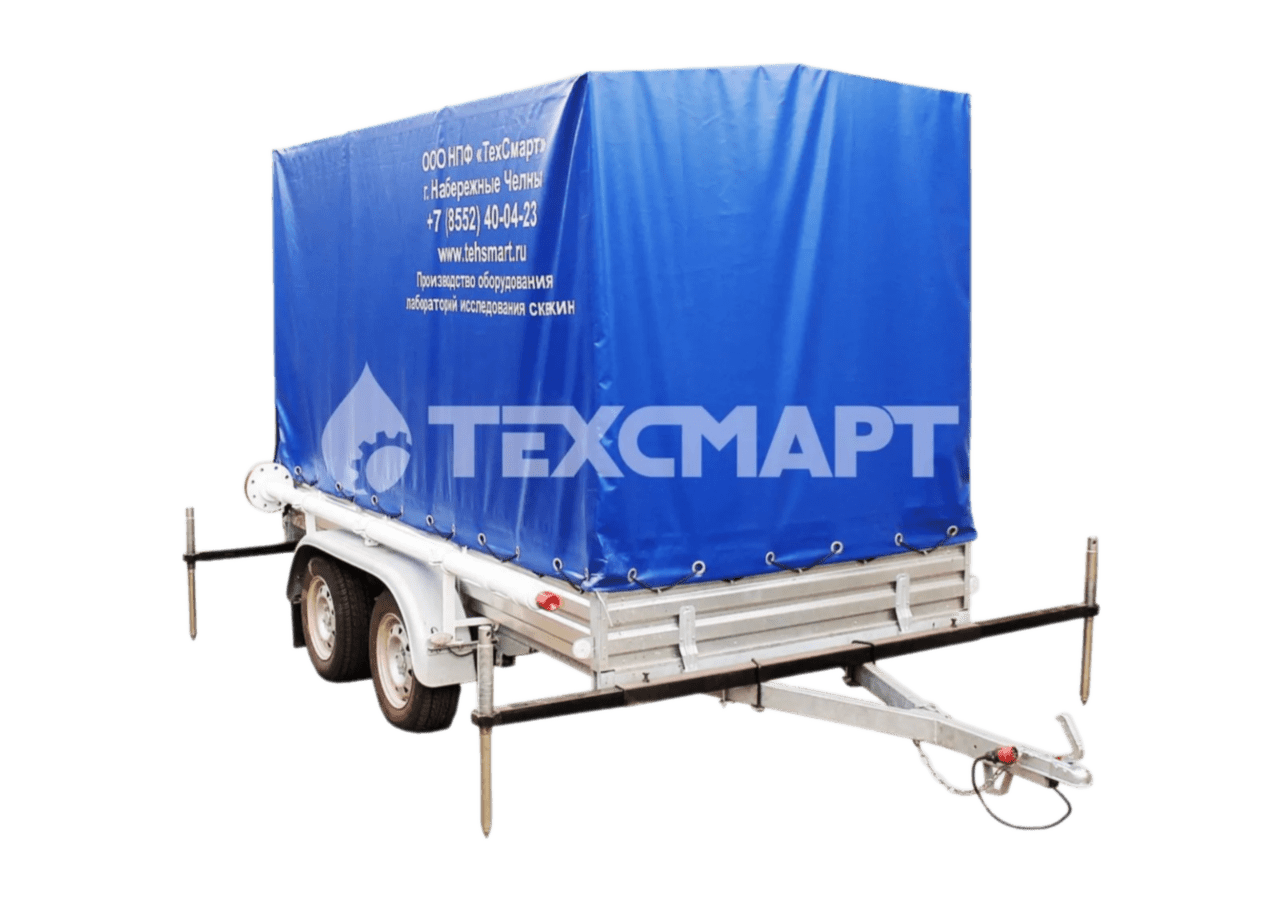

Mobile lab with LKI-Tekhno winch is the most cost effective and mobile option for making short trips to the site for well testing, logging and dewaxing jobs. The trailer may be transported to a wellsite by means of any vehicle equipped with a tow bar. The trailer with the slickline winch can be disconnected on-site from the tractive vehicle providing precious flexibility. And available power generation unit of the lab coupled with a power cable reel allow connecting to a power source on well site making the lab power independent.
LKI winch drive
- 1
Electro-mechanical drive
The system combines two types of actuators (mechanical and electric), which are mutually redundant. The desired actuator is selected by switching a special clutch. - 2
Electric drive
The torque is transmitted to the drum by an electric motor or gearmotor with a power of 4-5 kW and rated voltage of 220/380V. The presence of a frequency converter makes it possible to precisely regulate the drum speed without steps. - 3
Mechanical drive
The torque is transmitted to the drum from the vehicle engine via the KOM (DOM) by means of cardan and/or chain gears. Directional selection and speed change are made by means of the chassis gearbox (1-5 gears for ascending, reverse for descending) and also through the manual accelerator. - 4
Hydraulic drive
The torque is transmitted to the drum from the vehicle engine via the vehicle's COM using a hydrostatic transmission. Directional change and speed adjustment are performed smoothly and smoothly without step jumps by means of the control unit (joystick).
Trailer laboratory layouts
Technical Description
Platform: two-axled trailer
Zinc coated A-shaped towbar with a support stand
Bottom made of multilayered laminated plywood
Four-point stands to secure trailer in operating position
Body: soft top (canvas cover)/ hard top (sandwich panels, version for cold climate)
Spring suspension with hydraulic shock absorbers
Wheel blocks – 2 ea.
Zinc coated A-shaped towbar with a support stand
Bottom made of multilayered laminated plywood
Four-point stands to secure trailer in operating position
Body: soft top (canvas cover)/ hard top (sandwich panels, version for cold climate)
Spring suspension with hydraulic shock absorbers
Wheel blocks – 2 ea.
Slickline winch “LKI-Tekhno”
Winch drive: electric 2.2 kW / 4.0 kW
Winch drive control box (for electric drive)
Logging control panel “SKK-Tekhno 305”
Wellhead lubricator: L65-21 / L65-35
Winch drive: electric 2.2 kW / 4.0 kW
Winch drive control box (for electric drive)
Logging control panel “SKK-Tekhno 305”
Wellhead lubricator: L65-21 / L65-35
Generator: stand-alone, power 7.5 kW
Lighting: winch section 220 V and 24 V, wellhead floodlight: 220V
Sockets: 220 V
Reel w/ power cable – 50 m
Reel w/ ground cable and a cable clamp – 50 m
Rollout cable reel (in a hard top version)
Electric fan heater 220 V, power 2.0 kW
Lighting: winch section 220 V and 24 V, wellhead floodlight: 220V
Sockets: 220 V
Reel w/ power cable – 50 m
Reel w/ ground cable and a cable clamp – 50 m
Rollout cable reel (in a hard top version)
Electric fan heater 220 V, power 2.0 kW
Bed trunk
Slickline wire feed and a drum rollout hatch (in a hard top version)
Rack for pulley block to feed the wire
Carrier for spare drum for LKI-Tekhno winch
Rack for memory tools
Rack for lubricator
Rack for pulley block to feed the wire
Carrier for spare drum for LKI-Tekhno winch
Rack for memory tools
Rack for lubricator
Photo Gallery
FAQs
Yes, we can manufacture geophysical laboratories according to the customer's drawings or develop drawings according to the customer's wishes.
Yes, we install labs on all makes of vehicles.
Yes, we offer a 1-year warranty on labs based on the trailer chassis.
