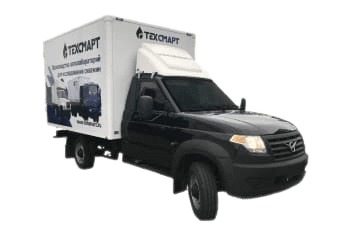

Mobile Well Testing Lab UAZ PROFI
The lab is ideal for oilfield service providers and allows prompt oilfield jobs, well remedial and memory logging as well as tubing cleaning from paraffin deposits.
By clicking on the button, you consent to the processing of your personal data in accordance with the privacy policy
01
02
Direct equipment manufacturer
We guarantee the quality of our products
Certified equipment
Development according to drawings
Warranty service
Worldwide delivery

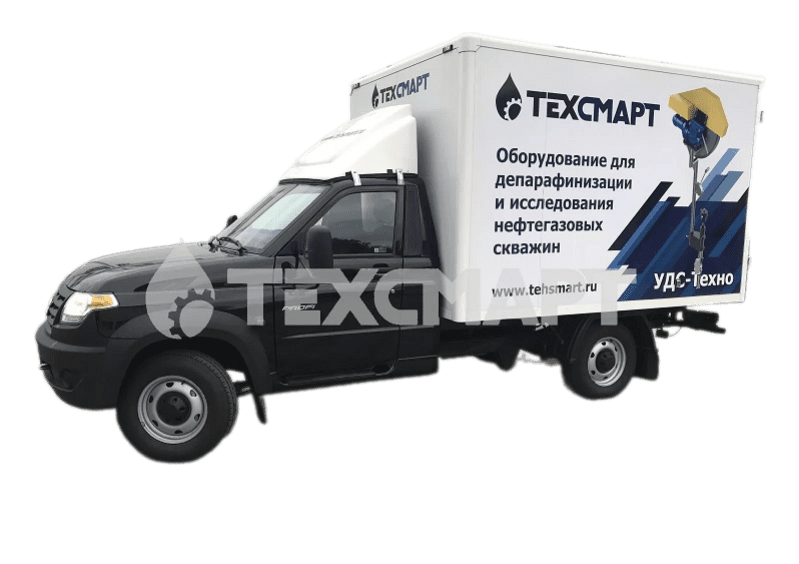

Well testing mobile lab fitted on “UAZ-236022 PROFI 4x4” platform includes a pre-installed winch “LKI-Tekhno” with slickline, logging control panel “SKK-Tekhno 305” and a stand-alone generator
LKI winch drive
- 1
Electro-mechanical drive
The system combines two types of actuators (mechanical and electric), which are mutually redundant. The desired actuator is selected by switching a special clutch. - 2
Electric drive
The torque is transmitted to the drum by an electric motor or gearmotor with a power of 4-5 kW and rated voltage of 220/380V. The presence of a frequency converter makes it possible to precisely regulate the drum speed without steps. - 3
Mechanical drive
The torque is transmitted to the drum from the vehicle engine via the KOM (DOM) by means of cardan and/or chain gears. Directional selection and speed change are made by means of the chassis gearbox (1-5 gears for ascending, reverse for descending) and also through the manual accelerator. - 4
Hydraulic drive
The torque is transmitted to the drum from the vehicle engine via the vehicle's COM using a hydrostatic transmission. Directional change and speed adjustment are performed smoothly and smoothly without step jumps by means of the control unit (joystick).
Technical Description
Engine: petrol
Emission Class: EURO-5
Drive: full time rear wheel drive, 4x4 AWD on demand/ part time
Gearbox: mechanical, five-speed
Rear suspension: leaf spring
Steering: hydraulic power steering
Additional:
-limited slip differential
-multimedia system involving a navigation system
-vehicle floor mats
-power windows
-cab top spoiler
Emission Class: EURO-5
Drive: full time rear wheel drive, 4x4 AWD on demand/ part time
Gearbox: mechanical, five-speed
Rear suspension: leaf spring
Steering: hydraulic power steering
Additional:
-limited slip differential
-multimedia system involving a navigation system
-vehicle floor mats
-power windows
-cab top spoiler
No. of seats: 1 operator’s seat
Van type: insulated
Van outside material: zink coated steel sheets with polymer coating
Floor material: transport plywood with zinc plated steel sheet
Van fittings:
- Zinc coated butt hinges on the rear door
- Lock mechanism of the rear door is a knock-off joint type
External lighting: LED sidelights
Internal lighting: LED lighting 220V, 3x15V
Additional:
- Bed trunk at operator’s seat
- Generator rollout skid
Van type: insulated
Van outside material: zink coated steel sheets with polymer coating
Floor material: transport plywood with zinc plated steel sheet
Van fittings:
- Zinc coated butt hinges on the rear door
- Lock mechanism of the rear door is a knock-off joint type
External lighting: LED sidelights
Internal lighting: LED lighting 220V, 3x15V
Additional:
- Bed trunk at operator’s seat
- Generator rollout skid
Slickline winch “LKI-Tekhno”
Winch drive: electric
Gear motor: 2.2 kW, 220V
Electric drive control panel w/ “Emergency Stop” button
Powered by generator
Slickline: Scraper wire as per GOST 7372-79, zink coated, OD 1.8mm (6000m) spooled on the winch drum
Winch drive control box: electric
Logging control panel “SKK-Tekhno 305”
Winch drive: electric
Gear motor: 2.2 kW, 220V
Electric drive control panel w/ “Emergency Stop” button
Powered by generator
Slickline: Scraper wire as per GOST 7372-79, zink coated, OD 1.8mm (6000m) spooled on the winch drum
Winch drive control box: electric
Logging control panel “SKK-Tekhno 305”
Generator: stand-alone, power 5.5 kW on a rollout skid
Van lighting: 220 V, 3x15W
Van lighting: 220 V, 3x15W
First aid kit
Fire extinguisher (CO2)
Emergency road triangle
Fire extinguisher (CO2)
Emergency road triangle
Photo Gallery
FAQs
Yes, we can manufacture research laboratories according to customer drawings or develop customised drawings.
Yes, we install research labs on the chassis of all makes of vehicles.
Yes, we give a 1-year warranty on laboratories based on UAZ Profi chassis.
